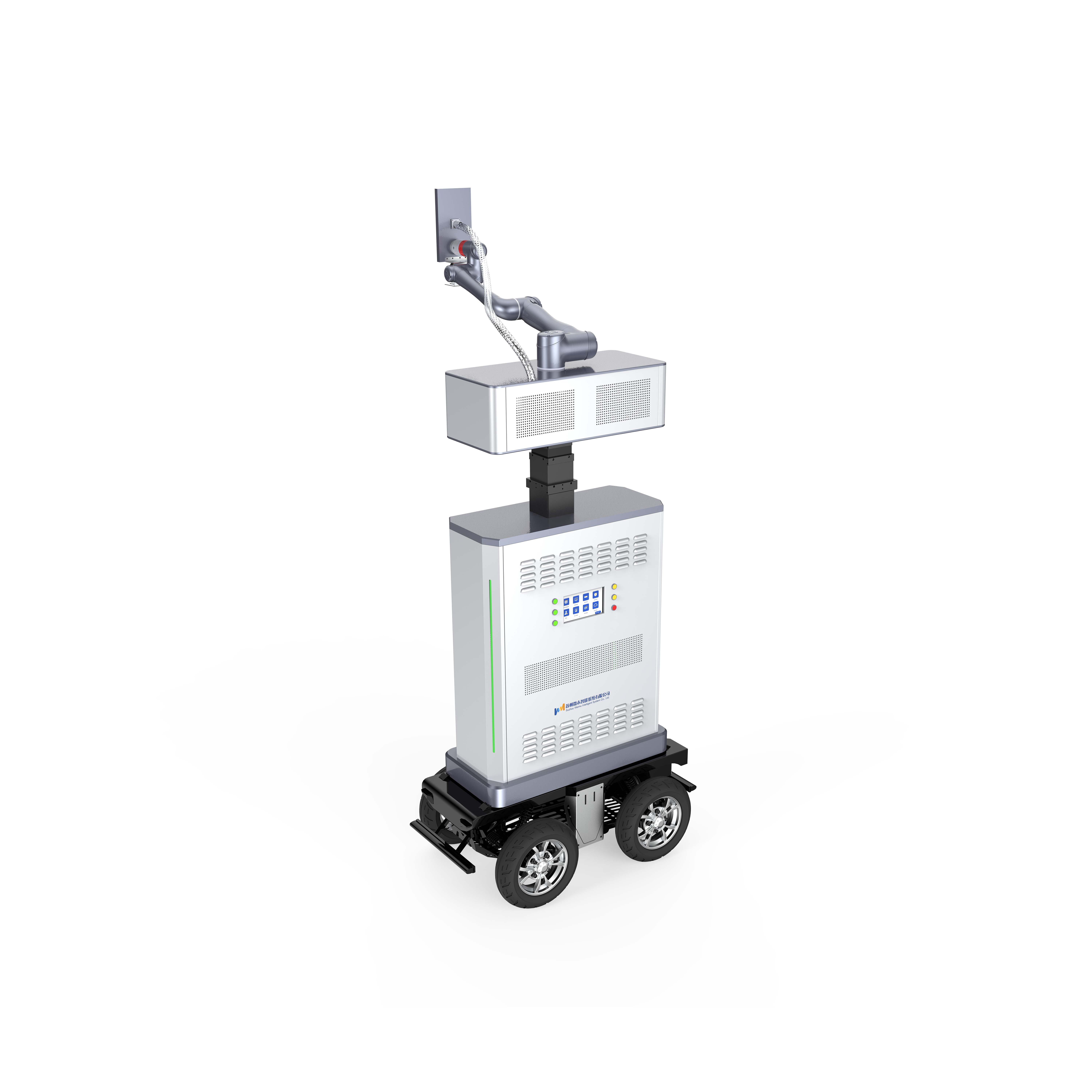

The CMS-500 is a mobile on-site vapor sampling and detection system independently developed by Weimu. It is primarily used in container terminals, port inspections, and logistics checkpoints. Without opening the container, it can flexibly move to the designated position, accurately locate the container, and automatically sample and analyze trace vapors escaping from within. The system provides rapid on-site detection to determine the presence of contraband or hazardous substances leaks.
Equipped with a mobile control system, visual positioning system, automatic sampling system, detection and analysis system, and data transmission system, the CMS-500 integrates advanced technologies to enable unmanned, intelligent, and flexible on-site inspections. This enhances operational efficiency at ports and inspection sites, driving new momentum for port development through intelligent technology.
Features
Non-intrusive rapid detection: Samples and analyzes container air through the ventilation port to quickly determine the presence of prohibited substances.
Fully automated detection process: The system autonomously positions, samples, and analyzes the container’s vapors, with real-time result synchronization.
Mobile inspection: Suitable for various scenarios, with flexible deployment across different locations.
Fast detection speed: From positioning to result output, each inspection takes less than 1 minute.
High accuracy: Equipped with precision sampling and analysis instruments.
Comprehensive substance library: Detects over 100 hazardous substances, with customizable library upgrades based on user needs.
Specifications
Technology: On-site mass spectrometry detection technology
Core Modules: Visual positioning system, Automatic sampling system, Detection and analysis system, Mobile control system, Data transmission system
Detection Range: Over 100 substances, including flammable and explosive materials, odorous substances, standard odor liquids, solid waste, volatile and semi-volatile organic compounds, drugs, explosives, fumigants, hazardous chemicals, etc.
Analysis Time: ≤1min
Library Update: Library upgradable
Data Storage: ≥100 records and expandable
Positioning: GPS real-time positioning
Working Temperature: 0°C to 40°C
Power Supply: AC 220V 50Hz, built-in battery included
